  • Fast, Flexible 3D Direct Editing

    • When you need more freedom to accommodate even the most radical late stage changes to a design, easily edit 3D CAD data or update outdated design intent in a parametric model, look no further.

    • The PTC Creo Flexible Modeling Extension (FMX) gives PTC Creo Parametric users more design flexibility and speed to overcome these challenges.

    creo flexible modeling extension slider #1
  • Design Software. Unlock Potential

    • Accelerate detailed design by editing parametric designs faster and easier
    • Easy selection of geometry, including surfaces and shapes
    • Fast geometry editing includes move, remove, attach, change, and more.
    • Simultaneously change multiple entities
    creo flexible modeling extension slider #2
  • 3D CAD Model Editing

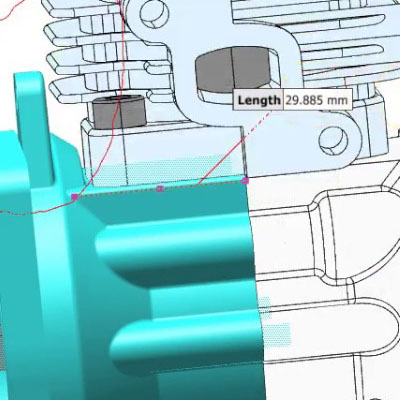

    • With the 3D copilot. You can use this navigational tool to “push-pull” your geometry to the desired position

    • Constrain selected geometry to be positioned relative to any desired reference by the desired offset dimension

    creo flexible modeling extension slider #3

Creo View ECAD

The increasing prevalence of electronics within everyday products poses a major challenge to many companies: how to allow many people inside and outside the company to view and interrogate electronic design information.

Lightning-fast and ultra-scalable -- with an intuitive, tasked-based interface -- PTC Creo View ECAD apps enable you to quickly and easily visualize PCB-related designs by themselves or in parallel with overall product designs. PTC Creo View ECAD supports PCB data from all major EDA tools, as well as drawings, images and documents from a multitude of sources, all without the need for the native authoring application. Plus, since PTC Creo View ECAD and PTC Creo View MCAD both utilize the same framework, users of both Apps can perform unique functions, such as cross-probing between ECAD/MCAD abstractions. With its compact, yet accurate viewable format, complex information can be quickly accessed to reduce rework and improve decision-making. Everyone within engineering, design, fabrication, test and assembly can collaborate -- whether in real-time or by using markups.

Check out the full list of all our Creo products: See More...

Contact us now!

Related Resources


Company: First Name: Last Name:
Email Address: * Phone:

Want to learn more about other Creo products?

Click Here

Screenshots and Videos for Creo View ECAD

Features and Benefits

  • Browse schematic CAE or physical PCB CAD databases, without using ECAD design tools, for library, schematic, PCB and BOM data

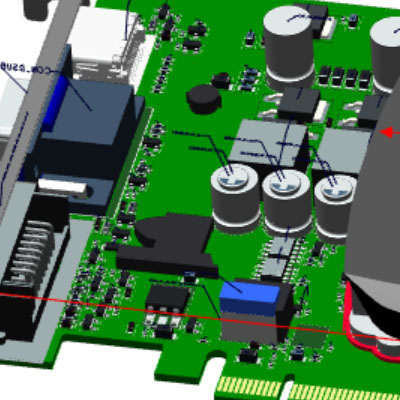

  • Enable visualization of the full electronic product, including its 3D model
  • Query intelligent design data, including component, pin and net attributes
  • Follow net connectivity across the schematic to PCB by pin function, to identify bad signal sources
  • Communicate changes, comments, or red-line data in multiple languages to the EDA user
  • Reduce design cycle time by up to 35%; realize significant productivity gains in board test
